Roll size (excluing vemier scale) / Volume, Weight.

	Thickness (mm)	Width (m)	Length (m)	Space (m2)	Volume (m3)	Weight (kg)
Roll	20	0.5	0.7	0.35	－	28
In Use		2	0.5	1	0.02

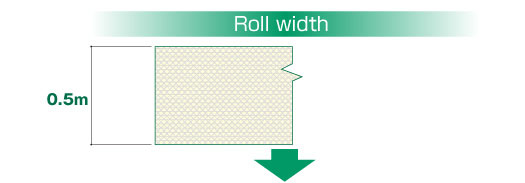

●Please expand the roll to the width direction and use it when the maximum
　volume is shown.
　Standard width: 2m, however, 1.5m and 3m are available.
●Follow the added steps below for easier installation.
　 1.10 mm pipe can be fixed to the both ends, so that fixing to frame
　　becomes easier.
　 2.Maximum expansion length is set to about 2 m for retaining a fixed size.
●Please count the added sludge weight when you design the frame strength.
●You can cut and assemble the roll freely because no run occurred.
●You can use Biofix for a prolonged period under the normal condition.

Installation Instructions

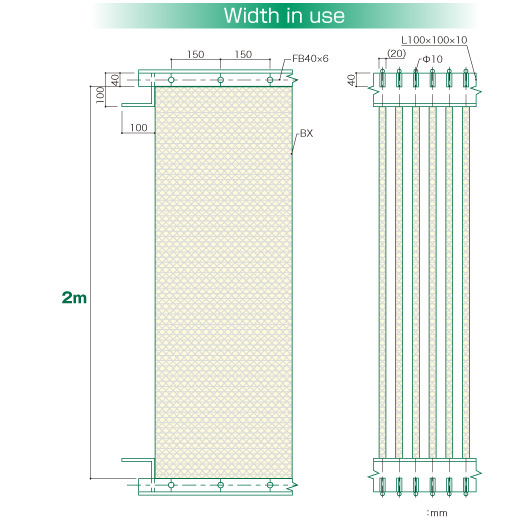

Standard installation method of BX
